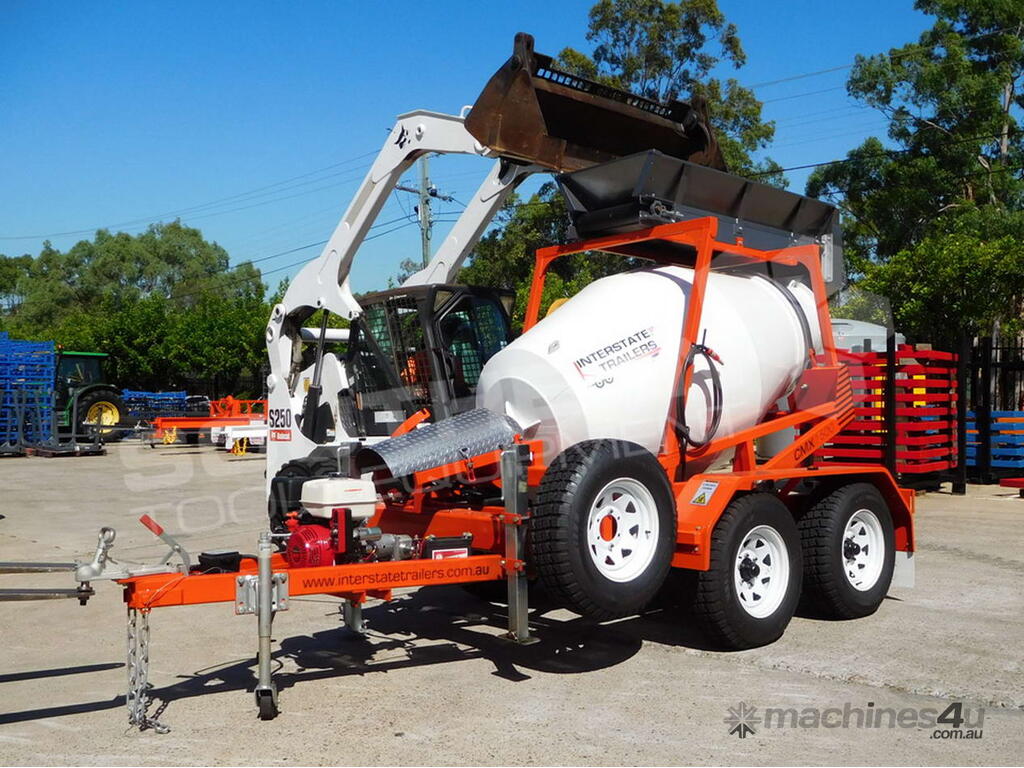

Interstate Trailers CMX1300 Concrete Mixer Trailer
Australian Manufactured. Full set up & work ready ----- $POA+GST
Trailer mounted Portable Concrete Mini Mixer with self-loading batching system:
. Max Capacity: 1.3+ cubic metre
. Brakes: 4 wheel electric brake suspension
. Tow Hitch: Choice of Pintle Hook / 50mm Ball type
. Honda GX390 electric start
. GVM: 4500kg
. Dry Weight: 1,680 KGS
. Tare: 2760kg
. Concrete load mix capacity of 1.3 + cubic Meters on site
. Honda 13 Horsepower Electric start power plant
. Mixing Bowl, 4mm heavy duty Bisalloy plate rolled steel
. Compliance to meet ADR standards
. 3000 NM Planetary heavy duty gear Box.
. Separate bidirectional hydraulic motor 22 RPM
. Top hydraulic conveyor batching feeder x 30RPM
. 60 Litre on board water tank with 12v pump
. 12v / 35 PSI water pump for wash down / hand nozzle
. Heavy duty hot dipped galvanized steel chassis
. Fully welded RHS steel
. Long draw bar for easy reversing
. Integrated checker plate double fold guards with fill-in stone guards and mud flaps.
. Cheque plate steel tail light board
. LED trail lights, recessed, reflectors, brakes and compliance plate- to ADR standards
. Tail, brake, indicator and number plate lights.
. Dual ‘underslung 50mm axle’ and 16” flotation tyres
. 16” x 7” Steel rims / 235-75R 16 LT6PM tyres.
. 6 stud Land Cruiser hub pattern.
. Electric Brakes with Brake Safe.
. Roller-Rocker. Load Sharing Suspension.
. Heavy duty Japanese Bearings
. Rear pump plate for safety.
. Large 8” jockey wheel.
. All wiring is 12 volt with 7 pin flat trailer plug.
. Front and rear stabilizing legs.
. Australian manufactured and designed to suit Australian tuff working conditions.
The CMX-1300 Mini Mix concrete batching mixing trailers are your solution to providing quick and easy quality concrete. The self-contained batching plant can be easily loaded by a Skid Steer / Wheel loader, Backhoe or even a Excavator allowing the overhead conveyor belt to do all the work of delivering material into the mixing bowl with no manual labour. (Overhead conveyor can be manufactured to specific lengs at extra cost)
The CMX-1300 Mini Mix can be towed behind most small trucks or any heavy duty work Ute with a 4.5t towing capacity that uses electric brakes. This allows the trailer to hold maximum capacity of onsite batching and mixing is 1.5 cubic metre. The CMX- 1300 is a invaluable and convenient solutions machine for small and large fencing contractors landscapers, builders, D.I.Y hire yard customers or even cattle yard / swimming pool installers. The biggest advantage is that Concrete can be mixed in remote locations at a fraction of the cost compared to current delivered ready-mix systems.
Features include self-loading hopper system a hydraulic rotation bowl and hydraulic tilt for mixing and dumping. (Mix whilst traveling) Large internal mixing blades and simple to use rear operator control panel. The CMX-1300 Mini mixer is fitted with a high end Honda GX390 electric start 13hp petrol engine with full electric start. 60 Litre on board water tank with 12v pump
. Full set up with turn key operation and work ready.
